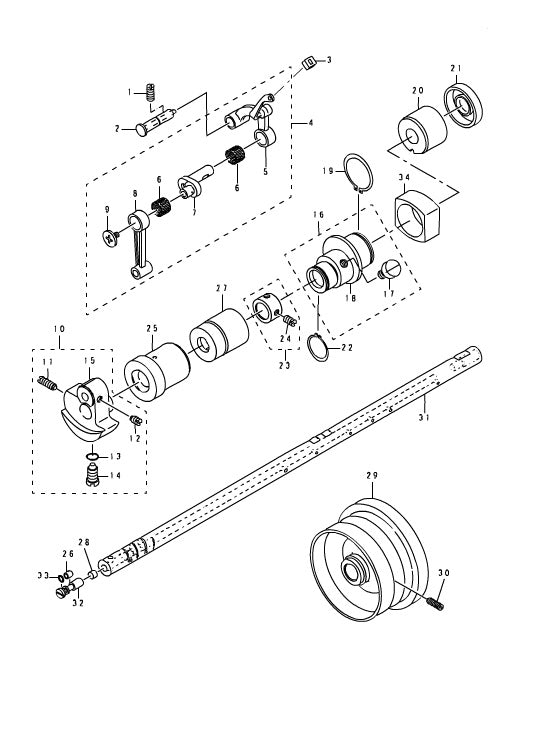

DDL-8300 2. Main Shaft & Thread Take-Up Lever Components

  1. SS8151150SP SCREW 15/64-28 L=10.5
  2. 22919559 THREAD TAKE-UP CRANK SHAFT ASM
  3. 22919203 RUBBER
  4. 22918072 THREAD TAKE-UP LEVER COMPL.
  5. 22918064 THREAD TAKE-UP LEVER ASM.
  6. 22918502 NEEDLE BEARING B
  7. 22918106 NEEDLE BAR CRANK
  8. 22906606 NEEDLE BAR CRANK ROD
  9. 22918304 LEFT SCREW
  10. 22903157 COUNTER WEIGHT ASM.
  11. SS8681650TP SCREW 9/32-28 L=16
  12. SS8660610TP SCREW1/4-40 L=6
  13. RO044240100 RUBBER RING
  14. SS7681650TP SCREW 9/32-28 L=16
  15. 22903108 COUNTER WEIGHT
  16. 22966154 FEED DRIVE ECCENTRIC CAM ASM.
  17. SS6661110SP SCREW1/4-40 L=11
  18. 22966105 FEED DRIVE ECCENTRIC CAM
  19. RC2501211KP SNAP RING25.0
  20. 22903405 MAIN SHAFT BUSHING. REAR
  21. 22903504 OIL SEAL
  22. RC1850001KP SNAP RING18.5
  23. 22904155 THRUST COLLAR ASM.
  24. SS8660610TP SCREW1/4-40 L=6
  25. 22903207 MAIN SHAFT FRONT BUSHING
  26. 22904007 OIL ADJUSTING COLLAR
  27. 22903306 BUSHING.INTERMEDIATE
  28. 22903702 ROLLER FELT
  29. 22927206 HAND WHEEL
  30. SS8151550SP SCREW15/64-28 L=15
  31. 22903009 UPPER SHAFT
  32. 22903900 OIL AMOUNT ADJUSTING PIN
  33. RO029180100 RUBBER RING
  34. 22966204 PITMAN BLOCK
