255RB Series CONSEW Heavy Duty 1-Needle, Triple Feed, Lockstitch Walking Foot

  • $ 1,950.00
    Unit price per

With: Large Bobbin and Vertical Axis Hook, Centra-Lube®, Semi-Automatic Lubrication System, 2 1/2 S.P.I. (10mm) Stitch Length, Reverse Feed, Safety Clutch

Available Models:

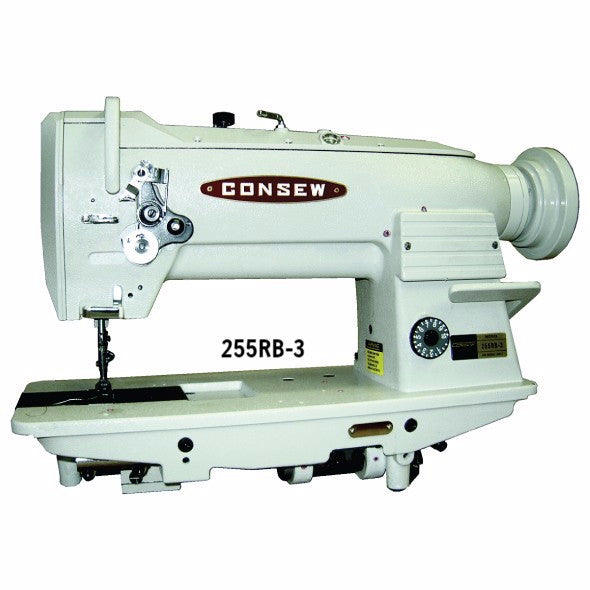

255RB-3 :  Walking Foot, Heavy Duty, Single Needle, Triple Feed, Drop Feed, Needle Feed, and                                   Alternating (Walking) Presser Feet, Lockstitch Machine

254RB-3 : Walking Foot, Heavy Duty, Single Needle Drop Feed, Needle Feed, Lockstitch Machine

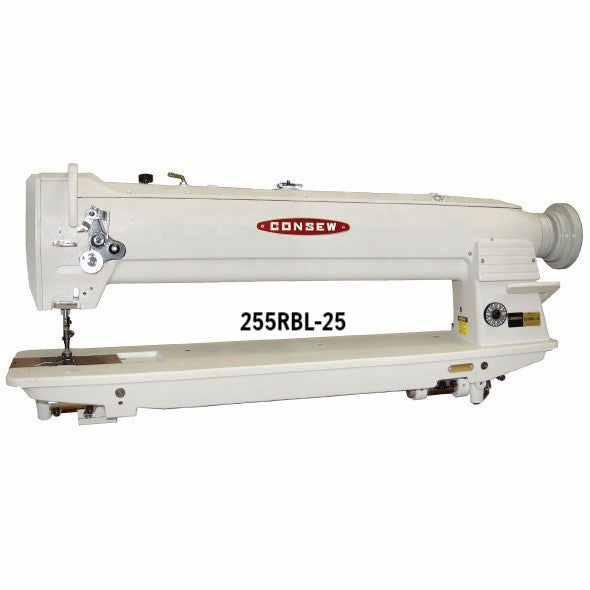

255RBL-25 : Same as 255RB-3 with 25" long arm workspace.

254RBL-25 : Same as 254RB-3 with 25" long arm workspace.



  • For sewing light to heavy-weight fabric, canvas, leather, vinyl, synthetics and various laminated and coated materials
  • Designed for stitching such products as auto, boat and furniture upholstery, tarpaulins, covers, awnings, tents, umbrellas, handbags, luggage, travelware accessories, sports and camping equipment, wearing apparel, outdoor clothing, footwear, foundation garments, orthopedic appliances, etc.


  • Centra-Lube® semi-automatic lubrication system
  • Automatic hook lubrication
  • Oil fed take-up
  • Large bobbin and vertical axis hook
  • Compound feed, walking foot mechanism assures uniform stitching
  • Simple wing nut adjustment permits raising and lowering of the center foot to allow for sewing different thicknesses of material
  • Safety clutch prevents the hook from being damaged
  • Safety-type handwheel
  • Stitch length indicator on outside of machine
  • All sizes of cording feet available
  • Standard attachments easily installed
  • Reverse stitching
  • Long Stitch - 21/2 SPI (10mm)
  • Large bobbin and vertical axis hook and reverse feed and High-lift


Speed, Max (S.P.M.) 2800
Clearence Under Presser Foot 9/16" (14mm)
Stitch Length 2 1/2 s.p.i. (10mm)
Work Space 10 1/4" (258mm)
Needle 135 x 17
Bobbin Pre-Wound U
Bed Size 7" x 18 7/8" (177mm x 477mm)
Stitch Type 301
Needle Bar Stroke 1 5/16" (33mm)
Hook 15040
