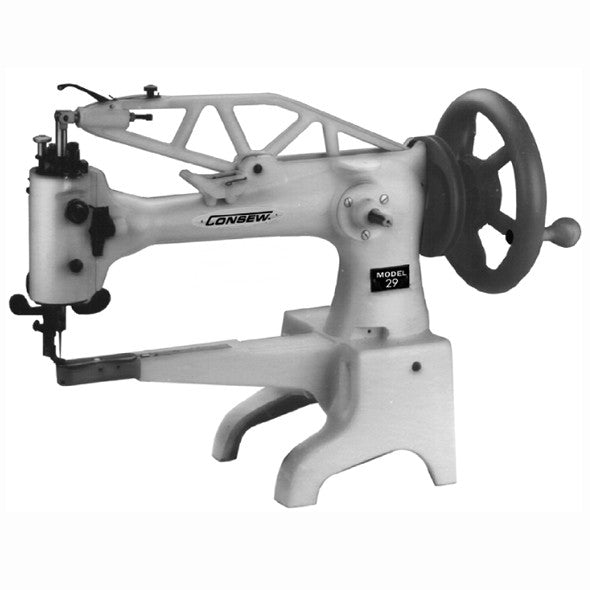

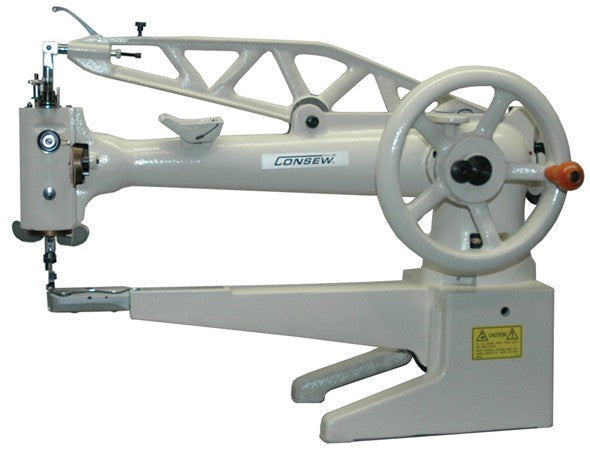

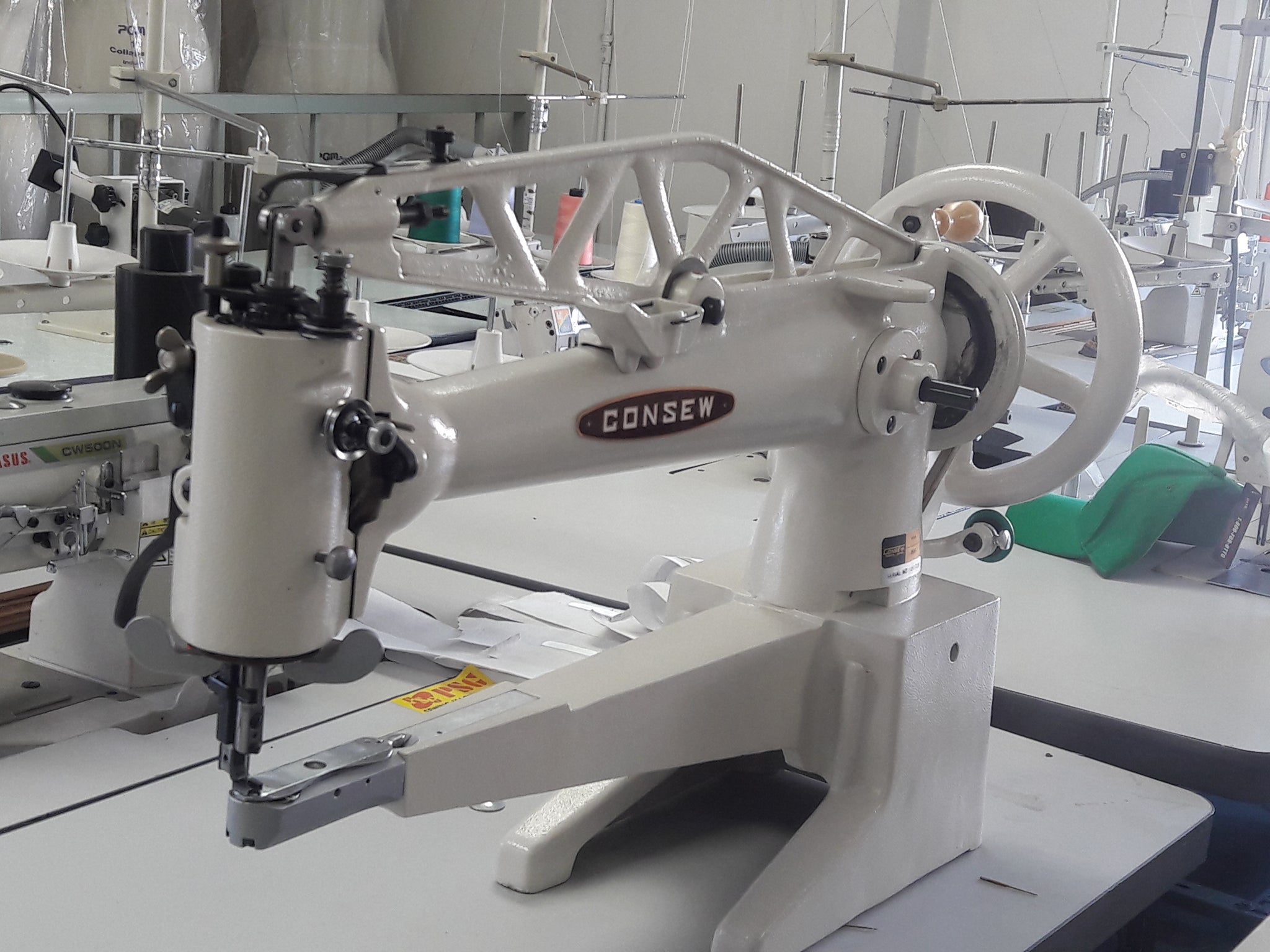

Consew 29B Series Sewing Machine (Shoe Cobbler/Leather Repair)

Consew 29B Series Sewing Machine (Shoe Cobbler/Leather Repair)

$ 2,450.00

Description

CALL IN FOR SHIPPING RATES!

Consew's Shoe Repair or Cobbler Sewing machine offers the easiest method to repair / sew shoe's or hard to maneuver items.

The 360 Degree needle rotation allows the sewer to control which direction they will need to sew.  The servo motor that controls the speed offers a more steady controlled run.

APPLICATIONS

Repairing of leather materials and shoe uppers.

FEATURES

  • Extra small cylinder bed
  • Oscillating Shuttle
  • Universal upper feed for stitching in any direction without turning work
  • Handwheel can be mounted on front or right end of machine
  • Wheel pulley "V" groove for motor drive
  • Double ended needle plate with different size holes at back end to accommodate various size needles
  • Adjustable thread take-up lever
  • Adjustable presser foot pressure and thread tension
  • Machine can be driven by foot treadle, hand crank or electric motor

SPECIFICATIONS

Number of Needles 1 (Single)
Feeding Mechanism Universal
Workspace Long Arm
Standard or Full Function Standard Functions
Speed, Max (S.P.M.) 500
Clearence Under Presser Foot 13/32 s.p.i. (10.5mm)
Stitch Length 3.5 s.p.i. (1-7mm)
Hook Size Large
Work Space 18" (460mm)
Width of Cylinder Bed 1 5/32" (27.8mm)
Needle 29x3, Style 3741
Depth of Cylinder Bed 1 3/32" (29.4mm)
Net Weight 77 lbs. (35kgs)
Gross Weight 88 lbs. (40kgs)
Total Carton Size 5.3 ft3 (.15cbm)
