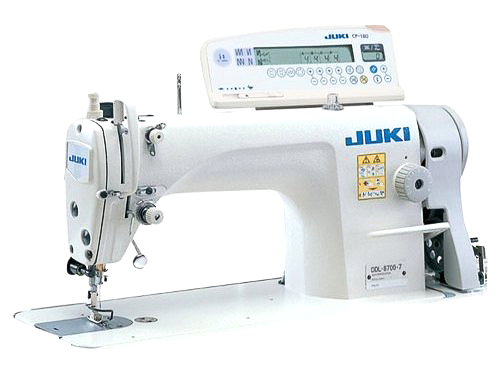

JUKI DDL8700-7WB Single Needle Automatic Sewing Machine
(**Please call or email for pricing and availability.)
The JUKI DDL-8700-7 delivers reliable, high-speed sewing with precision, efficiency, and convenience. Equipped with an automatic thread trimmer, compact servomotor, and advanced control system, this industrial sewing machine is designed for smooth operation and consistent stitch quality.
Key Features:
-
Automatic Thread Trimmer: Provides clean, consistent thread trimming for faster production.
-
Energy Efficient: Reduces power consumption by 16% compared to conventional models.
-
Compact Servomotor: Delivers efficient performance with reduced energy usage.
-
Reliable Stitch Quality: Ideal for garment manufacturing, alterations, and general sewing applications.
-
Automatic Foot Lifter Included: All JUKI automatic machines sold by ABC Sewing Machine come equipped with an automatic presser foot lifter.
Built for productivity, precision, and long-lasting industrial performance.
|
MODEL NAME |
DDL-8700-7 |
|
Application |
Light to Medium Weight |
|
Max.Sewing Speed |
5,000 sti/min |
|
Max.Stitch Length |
4 mm (0.16in) |
| Needle Bar Stroke | 30.7 mm (1.21in) |
|
Lift of Presser Foot |
By Hand: 5.5mm (0.22in) By Knee: 13mm (0.5in) |
|
Needle |
DBX1/16X257 |
|
Feed Dog |
4-Row |
|
Hook |
Automatic lubricating full-rotary hook |
|
Lubrication |
Automatic |
|
Lubricating Oil |
Sewing Machine Oil |
|
Automatic Reverse Feed Function |
Provided as Standard |
|
Control Box |
SC920CD |
|
Machine Motor |
M92AA |
|
Power Requirement |
Single Phase 100-240v & Three Phase - 3 200-240v |
|
Power Consumption |
320VA |
| Total Weight | 150 lbs (Machine/Table/Stand) |
