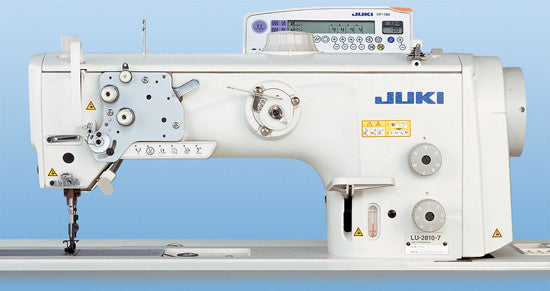

LU-2800 Series JUKI Semi-dry Direct-drive, Unison-feed, Lockstitch Machine with Vertical-axis Large Hook

  • $ 2,350.00
    Unit price per
  • Save $ 250


LU-2800 Series JUKI Semi-dry Direct-drive, Unison-feed, Lockstitch Machine with Vertical-axis Large Hook

Available 1-Needle Models:

LU-2810(vertical-axis 2.0 fold-capacity hook)

LU-2810-7(vertical-axis 2.0 fold-capacity hook)

LU-2818AL-7(vertical-axis 2.7 fold-capacity hook, long-pitch type)

LU-2828A-7(vertical-axis 2.7 fold-capacity hook, needle thread roll-in and shorter- thread remaining type)

Available 2-Needle Models:

LU-2860(vertical-axis 2.0 fold-capacity hook)

LU-2860-7(vertical-axis 2.0 fold-capacity hook)

LU-2868AL-7(vertical-axis 2.7 fold-capacity hook, long-pitch type)

High and long arm has been adopted. The long distance from the machine arm to the needle contributes to improved workability. The LU-2800 Series is a unison-feed, lockstitch machine with a vertical-axis large hook which is provided with substantially improved functions and performance.

Model name LU-2810 LU-2860 LU-2810-7 LU-2860-7
Max. sewing speed 3,000sti/min 2,700sti/min 3,000sti/min 2,700sti/min
Max. stitch length 9mm
Presser foot Auto: 20mm, By hand:10mm
Alternating vertical
movement
1~9mm
Needle 135×17 (Nm160) Nm125~Nm180
Thread #30~#5, B46~B138, Nm=60/3~20/3
Model name LU-2818AL-7 LU-2868AL-7 LU-2828A-7
Max. sewing speed 3,000sti/min 2,700sti/min 3,000sti/min
Max. stitch length 12mm 9mm
Presser foot Auto: 20mm, By hand:10mm
Alternating vertical
movement
1~9mm
Needle 135×17 (Nm160) Nm125~Nm180 134×35 (Nm140) Nm125~Nm180
Thread #30~#5, B46~B138, Nm=60/3~20/3
